Specifications

Features

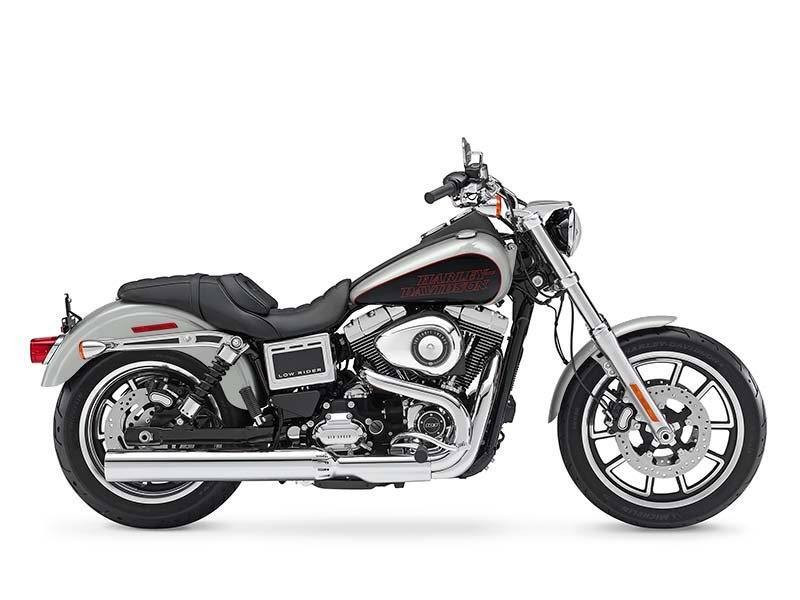

Features - SubModel	FXDL - Low Rider
Features - Exterior Color	Silver / Black

PRICING

Price	Standard
Price - Warranty (Months)	24
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Brand Name	Twin Cam 103™
Engine - Engine Type	V Twin
Engine - Cylinders	2
Engine - Engine Stroke	4-Stroke
Engine - Torque (Ft Lbs)	98.8
Engine - Torque (Nm)	134
Engine - Torque RPM	3500
Engine - Cooling	Air
Engine - Valves	4
Engine - Valves Per Cylinder	2
Engine - Valve Configuration	OHV - Pushrod
Engine - Bore (mm)	98.3
Engine - Bore (in)	3.87
Engine - Stroke (mm)	111
Engine - Stroke (in)	4.37
Engine - Displacement (cc)	1689.5
Engine - Displacement (ci)	103.1
Engine - Compression Ratio	9.6:1
Engine - Starter	Electric
Engine - Fuel Requirements	Premium
Engine - US Miles Per Gallon (Combined)	43
Engine - CAN Liters Per Kilometer (Combined)	5.5
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Fuel Injector	Yes
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Manual
Transmission - Number Of Speeds	6
Transmission - Overdrive	No
Transmission - Primary Drive (Rear Wheel)	Belt
Transmission - Primary Drive (Engine / Transmission)	Chain
Transmission - Gear Ratio (1)	9.31
Transmission - Gear Ratio (2)	6.45
Transmission - Gear Ratio (3)	4.79
Transmission - Gear Ratio (4)	3.88
Transmission - Gear Ratio (5)	3.31
Transmission - Gear Ratio (6)	2.79
Transmission - Reverse	No
Transmission - Transmission Brand	Six-Speed Cruise Drive®

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	92.3
Dimensions - Length (mm)	2344.4
Dimensions - Wheelbase (in)	64.2
Dimensions - Wheelbase (mm)	1630.7
Dimensions - Ground Clearance (in)	4.1
Dimensions - Ground Clearance (mm)	104.1
Dimensions - Length (ft)	7.69
Dimensions - Length (ft/ft)	7
Dimensions - Length (ft/in)	8.3
Weight	Standard
Weight - Dry Weight (lbs)	644
Weight - Dry Weight (kg)	292.1
Weight - Wet Weight (lbs)	666
Weight - Wet Weight (kg)	302.1
Capacities	Standard
Capacities - Fuel Capacity (gal)	4.7
Capacities - Fuel Capacity (l)	17.8
Performance	Standard
Performance - Engine Displacement to Weight (cc)	2.6

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Driver and Passenger
Foot Pegs - Adjustable	No
Exterior Guards	Standard
Exterior Guards - Chain Guard	No
Exterior Guards - Drive Shaft Guard	No
Exterior Guards - Belt Guard	Yes
Exterior Guards - Hand Guards	No
Exterior Guards - Brush Guard	No
Exterior Guards - Heel Guards	No
Exterior Guards - Light Guard	No
Exterior Covers	Standard
Exterior Covers - Side Cover	Yes
Front Fender	Standard
Rear Fender	Standard
Tank Divider	Standard
Tank Divider - Tank Divider Material	Vinyl
Tank Divider - Pocket	No
Stand	Standard
Stand - Stand Type	Kick
Handlebars	Standard

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Telescopic Fork
Front Suspension - Front Adjustable Fork Pre-Load	No
Front Suspension - Front Adjustable Rebound Damping	No
Front Suspension - Front Central Suspension Strut	No
Front Suspension - Steering Damper	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Twin Sided Swing Arm
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	Yes
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Rear Suspension Material	Steel
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Aluminum
Wheels - Chromed	No
Tires	Standard
Tires - Tire Brand	Michelin®
Tires - Front Tire Width	100
Tires - Front Tire Aspect Ratio	90
Tires - Front Tire Speed Rating	H
Tires - Front Wheel Diameter	19
Tires - Rear Tire Width	160
Tires - Rear Tire Aspect Ratio	70
Tires - Rear Tire Speed Rating	W
Tires - Rear Wheel Diameter	17
Tires - Front Tire (Full Spec)	Michelin® Scorcher™ 100/90 R19 57H
Tires - Rear Tire (Full Spec)	Michelin® Scorcher™ 160/70 R17 73V

BRAKES

Brakes	Standard
Brakes - Front Brake Type	Dual Hydraulic Disc
Brakes - Rear Brake Type	Hydraulic Disc

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	Yes
Seat - Seat Material	Leather
Seat - Seat Location	Driver and Passenger
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	26.8
Seat Specifications - Seat Height (mm)	680.7
Seat Specifications - Number Of Seats	2
Grab Rail or Strap	Standard

INSTRUMENTATION

Digital Instrumentation	Standard
Tachometer	Standard
Trip Odometer	Standard
Speedometer	Standard
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Light
Service Reminder	Standard

LIGHTS

Headlight Visor	Standard
Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

GLASS

Rearview Mirrors

Standard

CONVENIENCE

Adjustable Handlebars

Standard

PAINT & FINISH

Paint

Standard

STEERING

Steering	Standard
Steering - Steering Control	Handlebar

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
